Product Details:
|
| Board Thickness: | 1.6mm, 0.5~3.2mm, 0.2-3.0mm, 0.3~2.5mm, 2.0m | Copper Thickness: | 1oz,0.5-2.0 Oz,1-3oz,0.5-5oz,0.5-4oz |
|---|---|---|---|
| Base Material: | FR-4, CEM-3, Aluminum, CEM-1 OR FR-4, Alum | Application: | Electronics Device, Consumer Electronics, Electronical Products, Industrial, And So On |
| Color: | Green, Customized Color, Blue On Your Request | Standards: | IPC-A-610 E Class II-III, IPC 6021 Class 2, TDR Testing, ISO 9001, Class 3 |
| Min. Line Width: | 3mi, 4mil, 0.1mm, 0.1mm(Flash Gold)/0.15mm(HASL), 0.1 0mm | Min. Hole Size: | 0.25mm, 0.1mm, 0.2 Mm, 0.15-0.2mm, 0.1mm-1mm |
| Highlight: | 3mil single sided pcb board,single layer pcb manufacturer,single sided copper clad board |
||

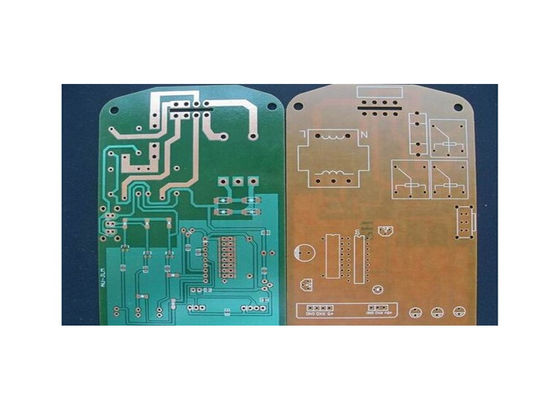

Single-side pcb
SMT (short for Surface Mounted Technology) is one of the most popular technologies and processes in the electronic assembly industry. Surface Mount Technology (SMT) of electronic circuits is called surface mount or surface mount technology. It is a kind of pin-free or short-lead surface assembly components (SMC/SMD, Chinese known as chip components) installed on the Printed Circuit Board (PCB) surface or other substrate surface, through reflow welding or immersion welding and other methods to be welded and assembled circuit installation technology.
| Copper Thickness | 1oz~3oz,0.5-5 Oz | Base Material | FR4, Aluminium, TG, Rogers, CEM-1 |
| Board Thickness | 1.6mm, 0.5~3.2mm, 0.2-3.0mm, 0.3~2.5mm, 2.0mm | Min. Line Width | 3mi, 4mil, 0.1mm, 0.1mm(Flash Gold)/0.15mm(HASL), 0.1 0mm |
| Min. Hole Size | 0.25mm, 0.1mm, 0.2 Mm, 0.15-0.2mm, 0.1mm-1mm | Surface Finishing | HASL, OSP, ENIG, HASL Lead Free, Immersion Gold |
| Min. Line Spacing | 0.003", 4mil, 0.2mm, 0.15mm, 0.1mm4mil) | Product Name | Printed Circuit Board, 94V0 PCB Design / PCB Manufacturing |
| Application | Electronics Device, Consumer Electronics, Electronical Products, Industrial, And So On | Solder Mask | Blue, Green. Red. Blue. White. Black.Yellow, Green/black/white/red/blue Etc., |
Our Advantages:
1. Program and functional test and package by Free.
2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.
3. Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 21 years experience.
4. Certifications: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001, ISO14001,IATF16949
Kerongda is a PCB manufacturer, providing turnkey and partial turnkey printed circuit board assembly services.We can produce customized PCB board and PCBA for you ,PCB solder mask color ,material, thickness etc... all can be chosed as your demands.
